Gasoline Generator

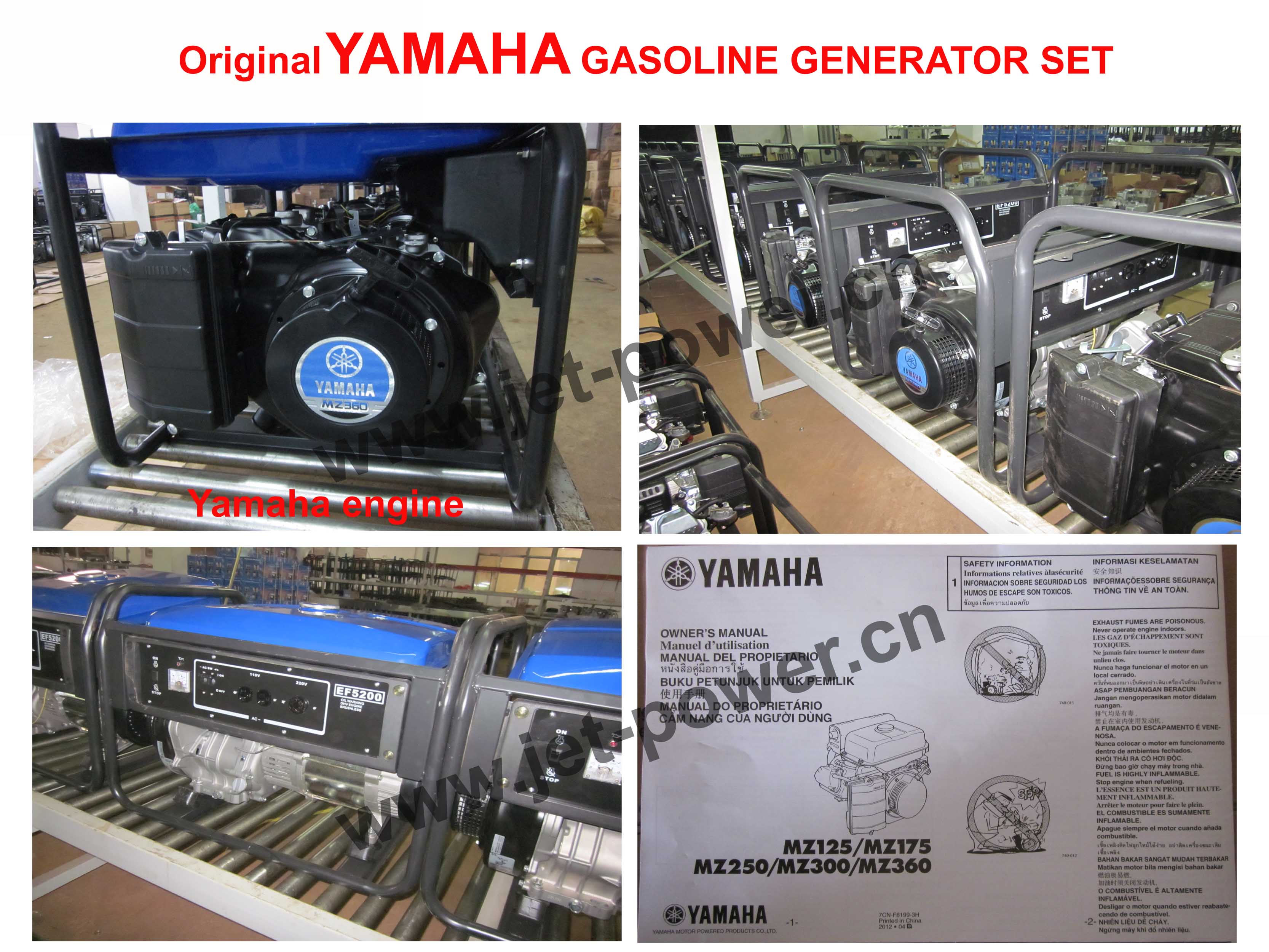

Powered by Yamaha Gasoline Generator Set

Powered by YAMAHA
Power: 2000W - 6000W
Alternator with AVR
Original YAMAHA Engine
Product description: Original Yamaha Engine Gasoline Generator, Powered by Yamaha, Power from: 2000W - 6000W, Manual Start, Carton packing, Optional Electric start with battery, wheel kit.
INQUIRY

■ Neat and economical for classical design.
■ Advanced AVR offers over-voltage, overheated and overload protection for the generator.
■ Frame designed for better protection.
■ Oil alert system with automatic engine shut-off.
■ Original YAMAHA Engine equipped.
■ Hydraulic-Magnetic circuit breaker.
■ Fuel tank enables Long-time for running.
■ Large muffler for quiet operation.
■ CE,EC-II,EPA,CARB,EMC approved

Specifications:

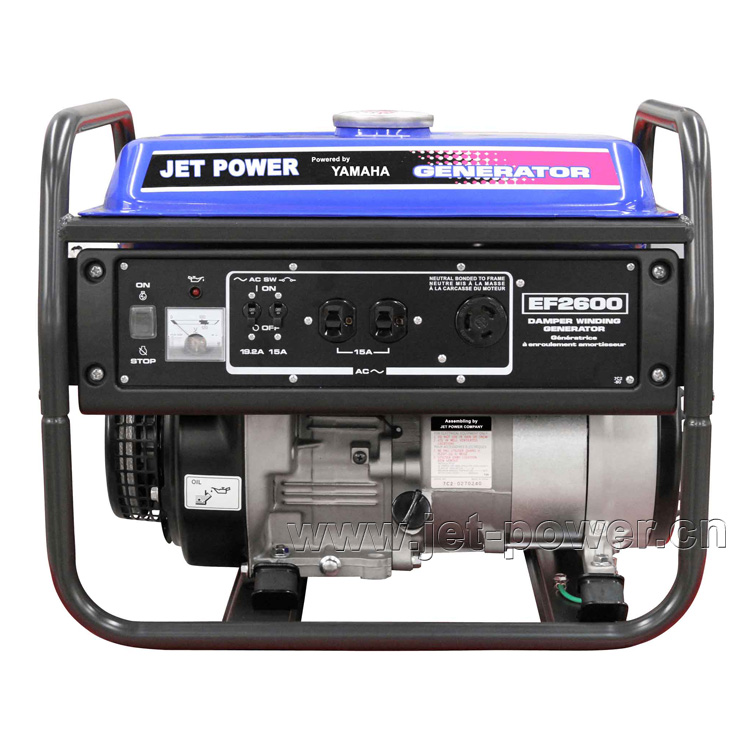

MODEL	EF2600	EF5200	EF6600
AC Frequency (Hz)	50Hz	50Hz	50Hz
AC Output voltage(V)	110;120;220;230;240;	110;120;220;230;240;	110;120;220;230;240;
Rated AC Output	2000W	3800W	5000W
Max.AC Output	2300W	4500W	6000W
Power Factor	1	1	1
DC Output	12V/8.3A （optional）	12V/8.3A （optional）	12V/8.3A （optional）
Engine	YAMAHA MZ175	YAMAHA MZ360	YAMAHA MZ360
Type	Air-Cooled, Four-Stroke, OHV Single Cylinder	Air-Cooled, Four-Stroke, OHV Single Cylinder	Air-Cooled, Four-Stroke, OHV Single Cylinder
Displacement(cc)	171	357	357
Starting System	Recoil	Recoil	Recoil
Lubrication oil	SAE 10W/30	SAE 10W/30	SAE 10W/30
Fuel Tank Capacity(l)	15	25	25
Continuous Work(h)	13	7.4	7.4
Noise Level LwA dB(A)	68	73	73
Dim(mm)	607X460X457	713X541X569	713X541X569
Gross Weight(kg)	42	85	88
20ft Container Qty	188	136	136
40ft Container Qty	388	280	280
Warranty	1 Years Limited Warranty	1 Years Limited Warranty	1 Years Limited Warranty
