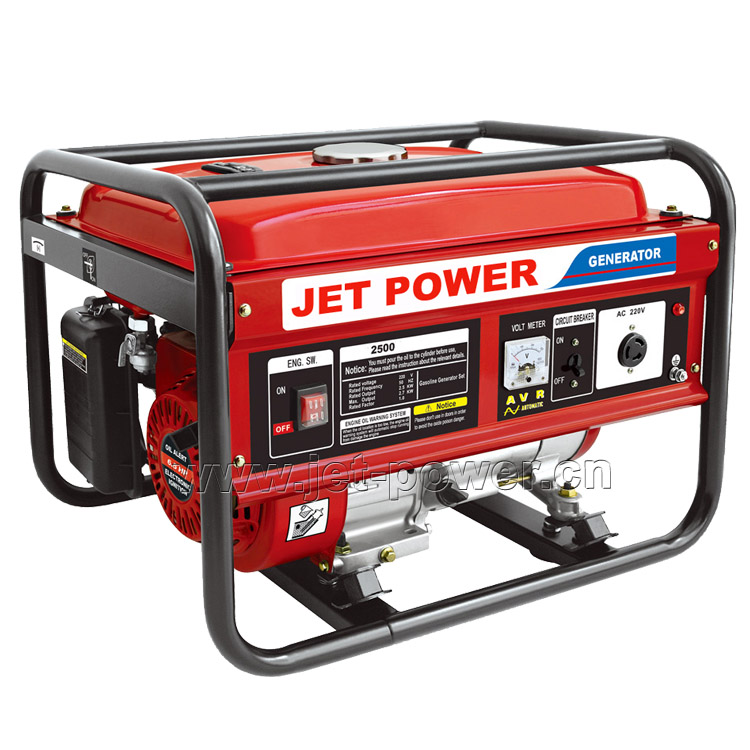

Gasoline Generator

1500W - 3100W Gasoline Generator Set

Brand: JET POWER
Power: 1500W - 3100W
Alternator with AVR
OHV Single cylinder engine
Product description: Gasoline Generator 1500W to 3100W Manual Start, Carton packing, Optional Electric start with battery, wheel kit.
INQUIRY

■ Neat and economical for classical design.
■ Advanced AVR offers over-voltage, overheated and overload protection for the generator.
■ Frame designed for better protection.
■ Oil alert system with automatic engine shut-off.
■ 5.5HP to 7.5HP gasoline engine equipped.
■ Hydraulic-Magnetic circuit breaker.
■ 15L fuel tank enables 13-hour running.
■ Large muffler for quiet operation.
■ CE,EC-II,EPA,CARB,EMC approved

Specifications:

Genset Model:		JET1500	JET2500	JET3500	JET3800	JET4500
Genset	AC Frequency (Hz)	50HZ	50HZ	50HZ	50HZ	50HZ
	AC Output voltage(V)	120;220;230;240;	120;220;230;240;	120;220;230;240;	120;220;230;240;	120;220;230;240;
	Rated AC Output	1500W	1800W	2000W	2500W	2800W
	Max.AC Output	1600W	2000W	2200W	2800W	3100W
	Power Factor	1	1	1	1	1
	DC Output ( If choose)	12V/8.3A	12V/8.3A	12V/8.3A	12V/8.3A	12V/8.3A
Engine	Engine	GE160	GE160	GE200	GE200	GE210
	Type	4-stroke OHV; Air-cooled; Gasoline Engine, (HONDA Technology)
	Displacement(cc)	163	163	196	196	212
	Starting System	Recoil or Electric	Recoil or Electric	Recoil or Electric	Recoil or Electric	Recoil or Electric
	Lubrication oil	SAE 10W/30	SAE 10W/30	SAE 10W/30	SAE 10W/30	SAE 10W/30
	Oil capacity (L)	0.6L	0.6L	0.6L	0.6L	0.6L
	Compression ratio	8.5:1	8.5:1	8.5:1	8.5:1	8.5:1
	Bore×Stroke	68mm×45mm	68mm×45mm	68mm×54mm	68mm×54mm	70mm×54mm
	Max.Output(hp/rpm)	5.5/3600	5.5/3600	6.5/3600	6.5/3600	7.0/3600
	Fuel Consumption (g/hp.h)	≤290	≤290	≤320	≤320	≤360
	Ignition System	Non-contact transistorized ignition (T.C.I)
	Spark Plug	F6TC	F6TC	F6TC	F6TC	F6TC
	Fuel Tank Capacity(l)	15	15	15	15	15
	Continuous Work(h)	12	12	11	11	11
	Noise Level LwA dB(A)	67	67	67	67	67
Standard Features	Oil Alarm	With	With	With	With	With
	Fuel indicator	With	With	With	With	With
	AC Voltmeter	With	With	With	With	With
	Standard Socket	With	With	With	With	With
	AC Circuit Breaker	With	With	With	With	With
	Large-capacity air filter	With	With	With	With	With
	Large-capacity fuel tank	With	With	With	With	With
	Auto voltage adjuster (AVR)	With	With	With	With	With
	DC Output	With	With	With	With	With
Packing	Dim(mm)	610X440X440	610X440X440	610X440X440	610X440X440	610X440X440
	Gross Weight(kg)	38	40	41	42	44
	20ft Container Qty	245	245	245	245	245
	40ft HQ Container Qty	590	590	590	590	590
