Open Diesel Generator

  • MITSUBISHI Diesel Generator Set
  • MITSUBISHI Diesel Generator Set
MITSUBISHI Diesel Generator SetMITSUBISHI Diesel Generator Set

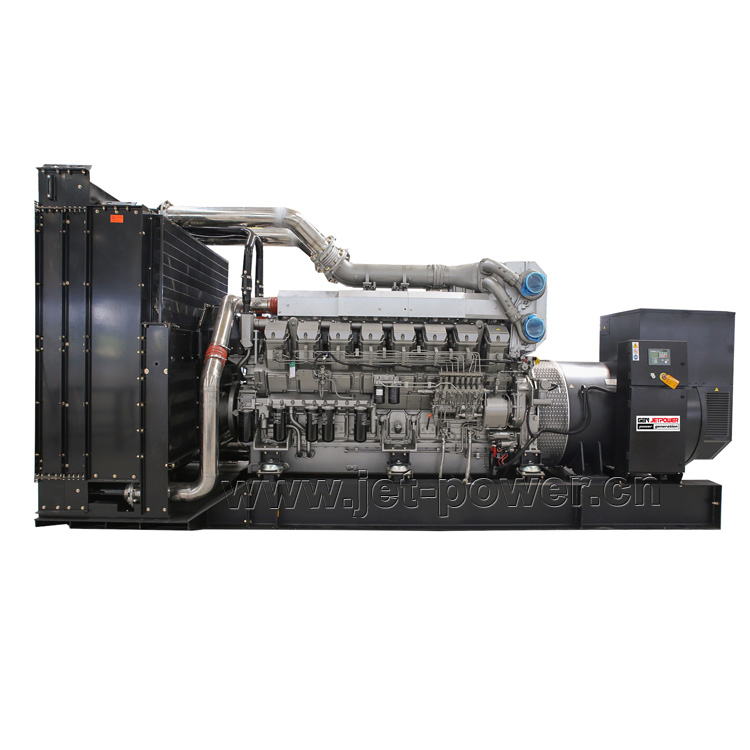

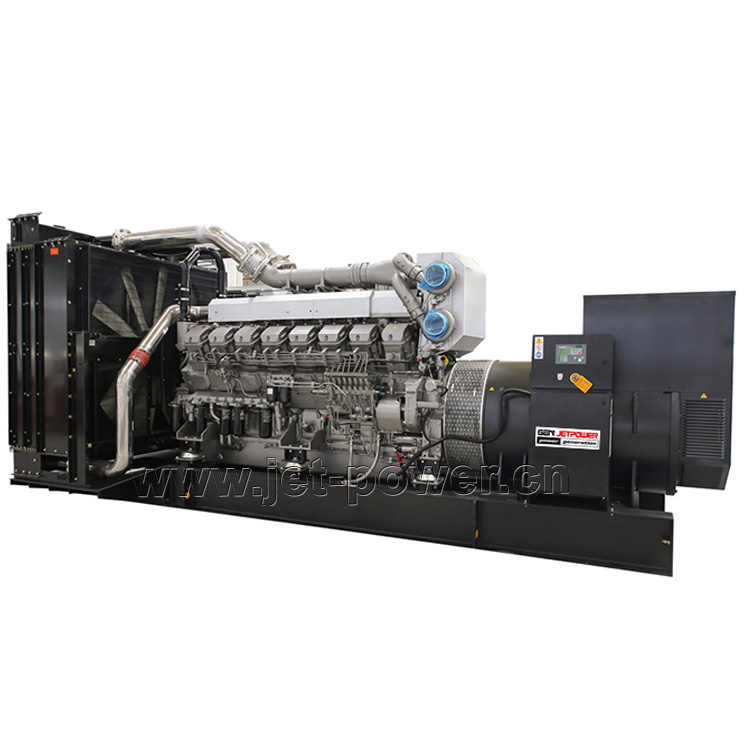

MITSUBISHI Diesel Generator Set

  • Output: 650kVA - 2200KVA
  • Powered by MITSUBISHI
  • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  • Open type / Silent type
  • Product description: MITSUBISHI Diesel Generator Set Power from 650KVA to 2200KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.

Silent diesel generator set, Powered by MITSUBISHI ENGINE

Soundproof diesel generator set

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set   Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm  or  60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system


Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.


Model 400V / 50Hz / 1500rpm MITSUBISHI DIESEL ENGINE 1500rpm Alternator
Standby Power Prime Power Engine No. of Cylinders / Alignment Bore/Stroke Displacement Fuel Consumption @ 100% Load Governing Type Original Stamford
kVA kW kVA kW (MM) (L) (L/H)
M-715 715 572 650 520 S6R2-PTA-C 6L 170×120 29.96 124L/h Electronic HCI544F
M-825 825 660 750 600 S6R2-PTAA-C 6L 170×220 29.96 158L/h Electronic HCI634G
M-1375 1375 1100 1250 1000 S12R-PTA-C 12V 170×180 49.03 247L/h Electronic PI734A
M-1500 1500 1200 1375 1100 S12R-PTA2-C 12V 170×180 49.03 272L/h Electronic PI734B
M-1650 1650 1320 1500 1200 S12R-PTAA2-C 12V 170×180 49.03 331L/h Electronic PI734C
M-1875 1875 1500 1700 1360 S16R-PTA-C 16V 170×180 65.37 370L/h Electronic PI734ES
M-2063 2062.5 1650 1875 1500 S16R-PTA2-C 16V 170×180 65.37 408L/h Electronic PI 734E
M-2200 2200 1760 2000 1600 S16R-PTAA2-C 16V 170×180 65.37 441L/h Electronic PI 734F
